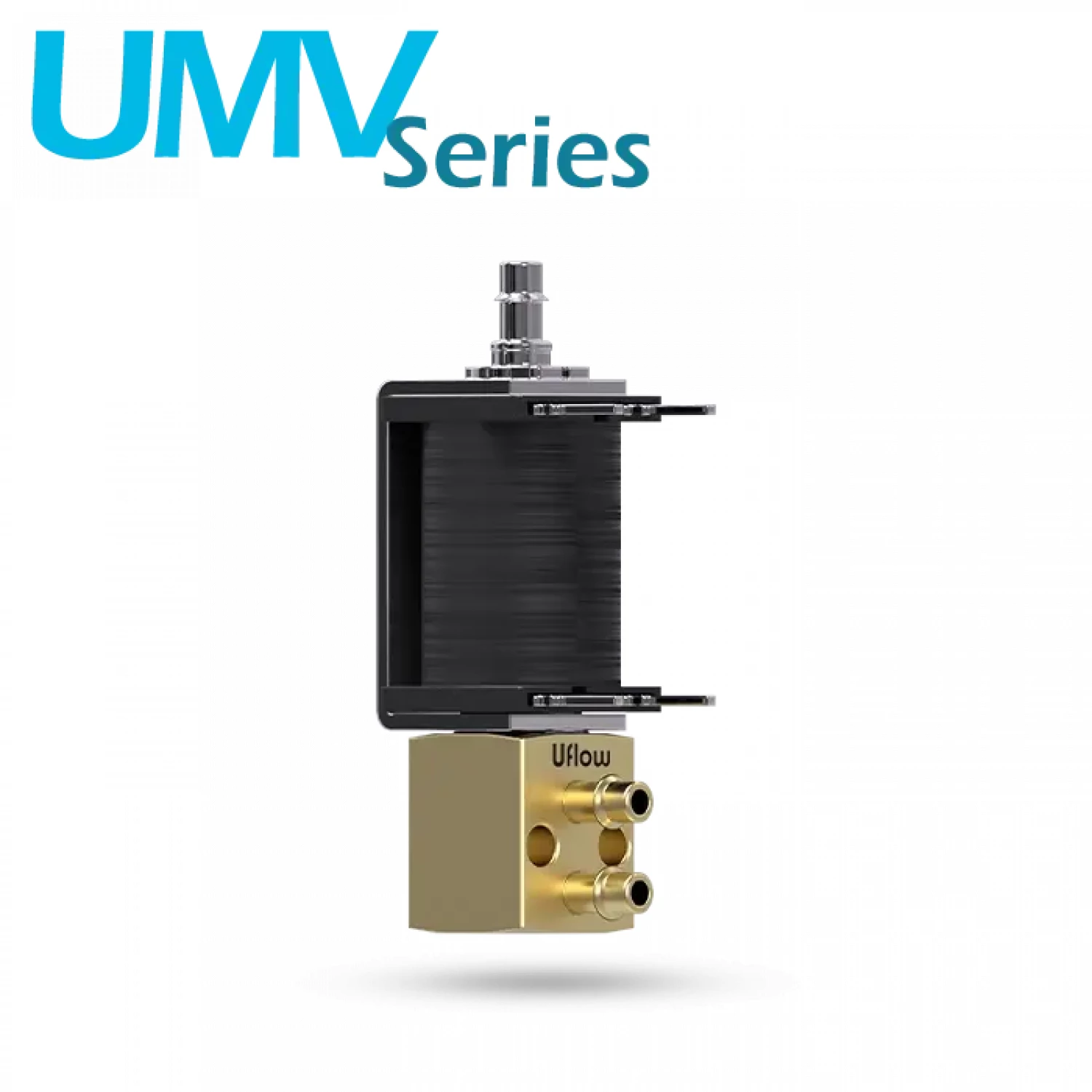

3/2 Way Direct Acting Universal Valve

Some pneumatic control points need a valve that can switch the air path without taking up much space. A 3/2 way direct acting universal valve is used for this type of switching requirement. We supply Uflow Automation 3/2 way direct acting universal valves in Ahmedabad, Gujarat, for suitable pneumatic and fluid control applications where the valve function, port arrangement and operating conditions need to match the system.

Simple Switching With a 3/2 Way Arrangement

A 3/2 way valve has three ports and two switching positions. Depending on the valve design and selected configuration, the ports can connect or disconnect different flow paths when the valve changes position.

The direct acting design operates the valve mechanism directly through the actuator. This makes the operating principle straightforward and useful for applications where a direct switching action is required.

Universal Design for Different Flow Arrangements

The word universal refers to the valve's ability to be configured for different flow functions according to the required application. Before ordering, the required normal position, port connection and flow direction should be checked against the product specification.

Where This Valve Can Fit in a Pneumatic Circuit

Three-port valves are commonly used where one flow path needs to be supplied while another path is exhausted or changed. The exact use depends on the circuit design and the valve's normal position.

For example, a control circuit may need to send air to an actuator during one switching condition and provide an exhaust path when the valve returns to its other position. The valve selection should follow the actual circuit diagram rather than only the name of the valve.

Direct Acting Operation at the Control Point

In a direct acting valve, the actuator acts directly on the valve's internal mechanism. The valve doesn't depend on a separate pilot flow for the basic switching action. This can be useful for suitable applications where the valve needs direct operation at the control point.

The electrical or actuating details still need to match the application. Voltage, pressure, medium, temperature and connection specifications should be checked from the required Uflow Automation model before installation.

Important Details Before You Select the Valve

Useful for Compact Control Panels and Machines

Space around pneumatic control components can be limited, especially inside machine panels and compact assemblies. A suitable direct acting 3/2 way valve can be considered where the required switching function needs to fit into a smaller control arrangement.

For replacement work, the old valve model, port size, operating pressure and electrical details should be checked before ordering. This is usually more useful than selecting a replacement only by looking at its external size.

Uflow Automation Valve Supply in Ahmedabad

We supply Uflow Automation 3/2 way direct acting universal valves in Ahmedabad and across Gujarat for suitable industrial and pneumatic control requirements. We can check the product specification based on the information available from your existing installation or new machine design.

If you're looking for a 3/2 way direct acting universal valve in Ahmedabad, Gujarat, share the required medium, pressure, port size, normal position, actuation details and quantity with us. We'll help you check the suitable Uflow Automation configuration for your application.
