Poppet Valve

Some pneumatic circuits need a valve that can switch air quickly and handle repeated operation. That's where the poppet design becomes useful. We supply Uflow Automation poppet valves in Ahmedabad, Gujarat, for pneumatic directional control applications where the valve type, port size, pressure and operating method need to match the machine.

Uflow Automation Poppet Valve Range for Pneumatic Control

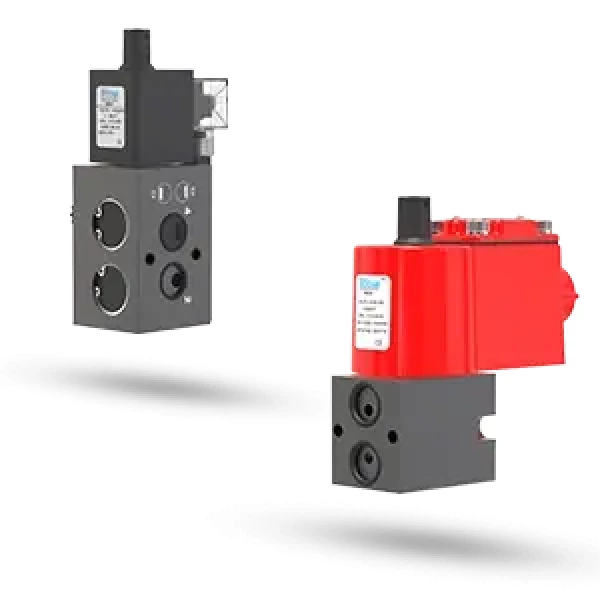

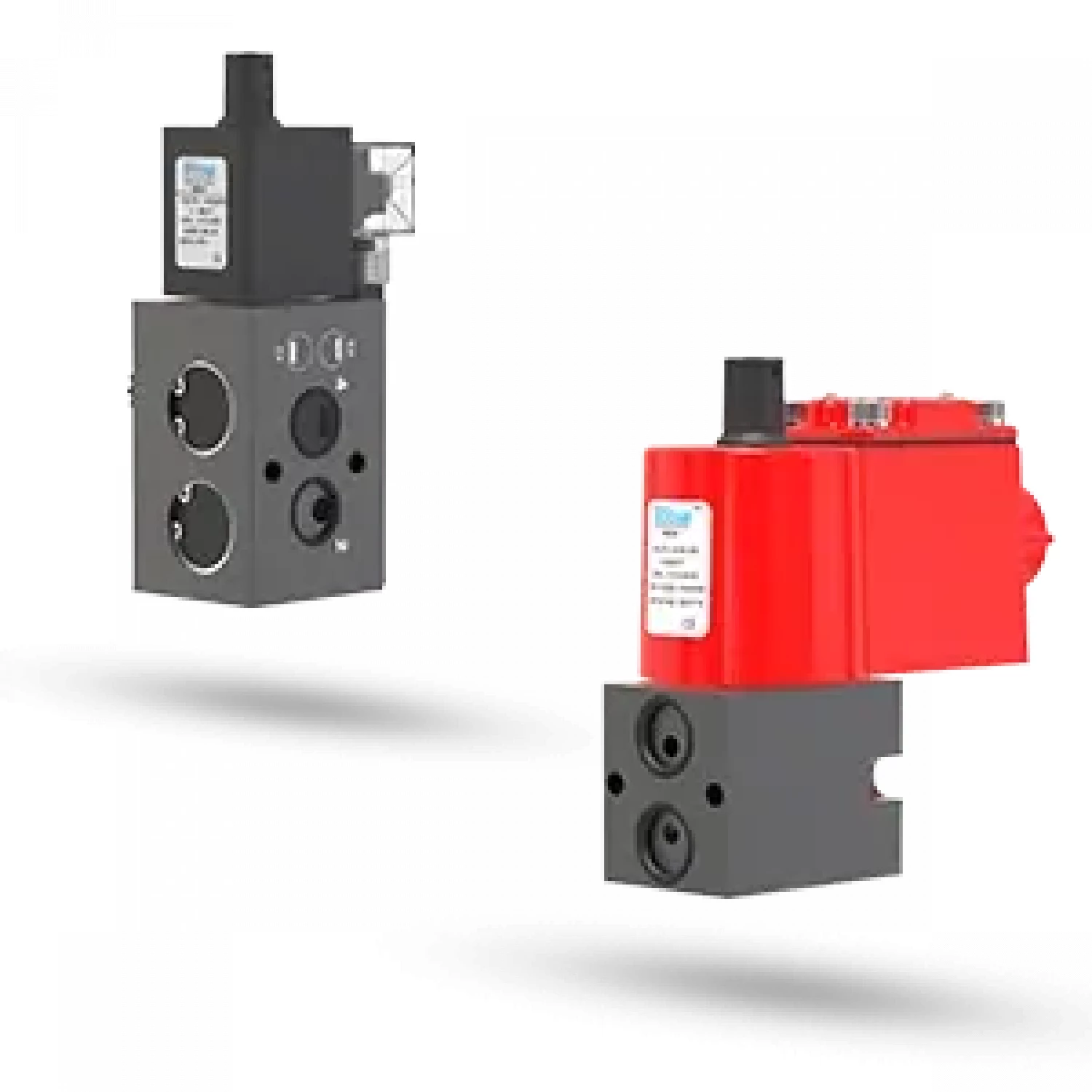

Our Uflow Automation range includes internally pilot-operated poppet valves in different configurations. The available DCP Series includes 3/2 single solenoid poppet valves with normally closed and normally open functions. The range also includes 5/2 single solenoid directional control poppet valves, double solenoid versions and NAMUR-type arrangements for suitable pneumatic applications. :contentReference[oaicite:0]{index=0}

3/2 Poppet Valves for Simple Switching

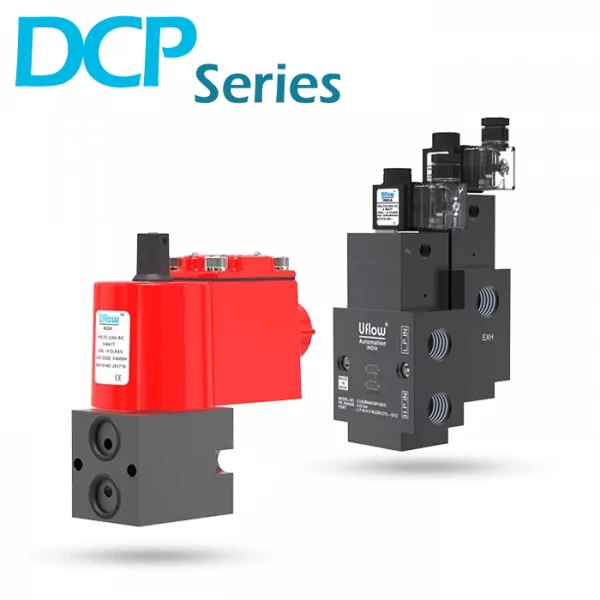

The 3/2 single solenoid poppet valve is available in normally closed and normally open versions. The DCP Series uses an internal pilot-operated poppet design and has 1/4 inch BSP inlet, outlet and exhaust ports, with NPT availability listed by Uflow Automation.

The standard listed working pressure is 2 to 10 bar, with compressed air as the media. The 7 mm orifice and 18 Kv flow factor are listed for the DCP Series. The specified ambient and media temperature range is 5°C to 60°C. :contentReference[oaicite:1]{index=1}

5/2 Directional Control for Pneumatic Movement

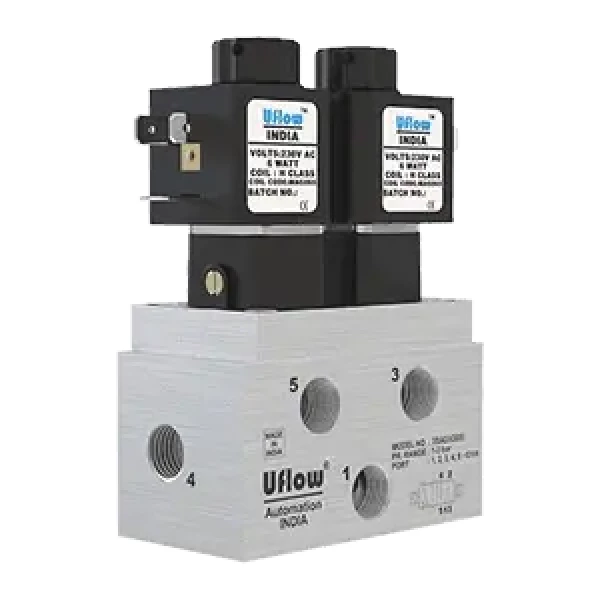

When a pneumatic actuator needs air directed to two sides for movement, a 5/2 configuration can be selected. Uflow Automation's range includes 5/2 single solenoid directional control poppet valves with spring return and double solenoid versions. The listed 5/2 range uses an internal pilot-operated poppet design and is intended for compressed air control. :contentReference[oaicite:2]{index=2}

This gives buyers a choice based on the required machine sequence. A spring-return version returns to its defined position when the solenoid signal is removed, while a double-solenoid arrangement uses separate electrical signals for the two switching directions.

Technical Details at a Glance

Coil and Enclosure Choices

The DCP Series is listed with 24V AC, 110V AC, 230V AC, 12V DC and 24V DC coil options. Power consumption is listed as 9W for the AC options, 10W for 12V DC and 11W for 24V DC. Uflow also lists epoxy square, metallic round, IP67 flameproof junction box and IP68 weatherproof coil housing options. :contentReference[oaicite:3]{index=3}

The valve range also includes manual override, which can be useful when checking or operating the pneumatic circuit during maintenance. The DCP Series is listed as tested for 10 million cycles, and lubrication isn't essential for the specified design. :contentReference[oaicite:4]{index=4}

Check These Points Before Selection

We recommend checking the required valve configuration, port size, air pressure, coil voltage, pneumatic function and installation arrangement before ordering. For replacement requirements, the existing model number can make selection easier.

We supply Uflow Automation poppet valves for industrial pneumatic requirements in Ahmedabad and across Gujarat. If you need a DCP Series 3/2 poppet valve, 5/2 directional poppet valve or another available Uflow configuration, share your technical requirement with us. We'll help you check the suitable model and provide the relevant supply details.
