Pneumatic Actuator

Turning a valve by hand is simple when a line is small and operated only a few times. Industrial systems are different. When a valve has to open and close as part of a machine or process, using compressed air can make the movement part of the automatic control system. We supply Uflow Automation pneumatic actuators in Ahmedabad, Gujarat, for rotary valve automation and other applications where controlled mechanical movement is required.

Rotary Movement Built Around Pneumatic Operation

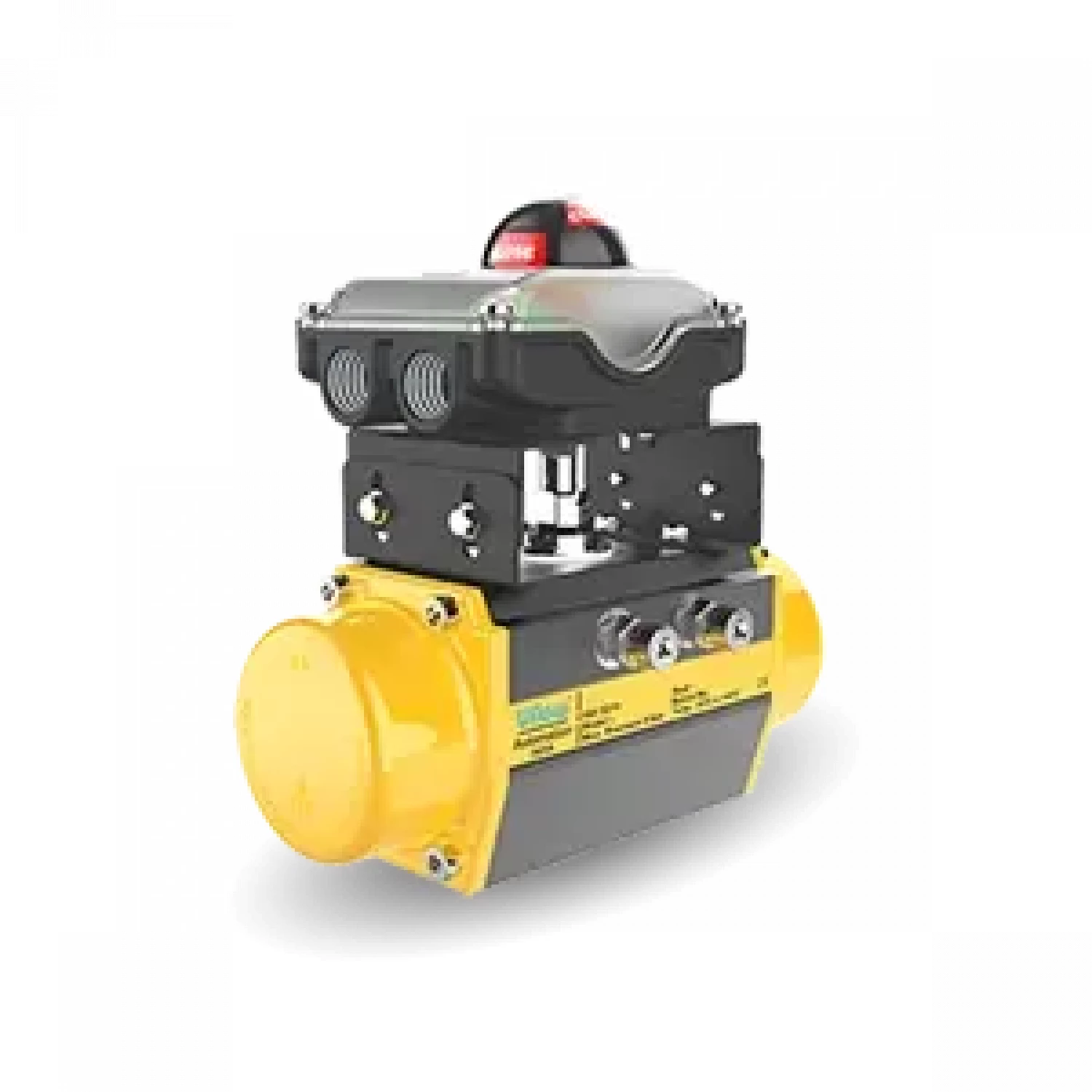

Uflow Automation offers pneumatic actuator models for rotary motion, including single acting and double acting designs. The range also includes aluminium rack and pinion actuators and stainless steel pneumatic rotary actuators. These options allow the actuator to be selected according to the required valve movement, actuator construction and operating conditions.

Single Acting and Double Acting Options

The operating arrangement is one of the first things to check when choosing a pneumatic actuator. A single acting actuator uses compressed air for movement in one direction and uses a spring return arrangement for the return movement. This can suit systems where a defined return action is required when the air supply is removed.

Double acting actuators use pneumatic pressure for movement in both directions. Uflow Automation offers SS double acting pneumatic actuator models for valve actuation, with the listed AD80 model having a working pressure of 8 bar. The choice between single acting and double acting depends on the valve movement and the control arrangement of the machine.

Rack and Pinion Design for Rotary Applications

The 50N aluminium rack and pinion actuator is one of the listed Uflow Automation options for rotary motion. The AD80 model has an aluminium body, 50 N load capacity and a listed pressure of 8 bar. Its operating temperature range is shown as -20°C to 80°C. The range also includes the 10N stainless steel rotary actuator in model AD50, with stainless steel construction and a listed pressure of 8 bar.

Stainless Steel Choices for Demanding Areas

Where the actuator body material needs to suit the working environment, stainless steel models are available in the Uflow Automation range. The listed SS double acting actuator uses stainless steel construction, while the 10N SS pneumatic rotary actuator is also offered in stainless steel. These models are listed for valve actuation and rotary motion applications.

Selection Points Before Ordering

We recommend checking the valve movement, required torque or load, available air pressure, actuator type and installation arrangement before selecting a pneumatic actuator. The actuator has to match the valve it will operate. A model that looks suitable by size alone may not be the correct choice for the actual operating condition.

For industrial buyers in Ahmedabad and across Gujarat, we supply Uflow Automation pneumatic actuators for suitable rotary valve automation requirements. Share the valve type, required actuator size or model, working air pressure and operating arrangement with us. We'll help you check the available option before you place the order.

If you're looking for a pneumatic actuator in Ahmedabad, Gujarat, send us your requirement today. We can assist with Uflow Automation model details, technical specifications and supply enquiry.
