Ball Valve

A ball valve is often selected when a pipeline needs a clear open or closed flow path. The basic operation is simple, but industrial requirements can vary a lot based on pipe size, media, pressure, temperature and the way the valve needs to be operated. We supply Uflow Automation ball valves in Ahmedabad, Gujarat, with different three-piece designs and manual or actuator-operated options for industrial flow control applications.

Three-Piece Designs for Different Industrial Requirements

The Uflow Automation range includes three-piece ball valves in stainless steel construction. We offer manually operated models as well as versions prepared for pneumatic or electric actuation. The three-piece construction gives access to the valve body for maintenance, while the ISO 5211 mounting arrangement available on selected models makes actuator mounting more convenient.

Available sub-ranges include 3 piece manually operated ball valves, 3 piece ball valves with actuator, 3 piece SS pneumatic ball valves with flanged ends, pad actuator ball valves and screwed or socket weld ball valves.

Manual Ball Valves for Straightforward Operation

For applications where the valve is operated by an operator rather than an automatic control system, we supply Uflow Automation three-piece manually operated ball valves. The listed range includes sizes such as 1/2 inch, 1 inch, 1.5 inch and 2 inch. Stainless steel options include SS304 and SS316 grades depending on the model.

The 2 inch three-piece manual ball valve listed by Uflow has a full-bore design, floating ball arrangement and blow-out-proof stem. It can be supplied with a hand lever or other operating arrangements depending on the specified configuration. The listed design standards include ASME B16.10, ASME B16.25, ASME B16.34, ASME B16.5, API 598, BS EN ISO 17292 and ISO 5211.

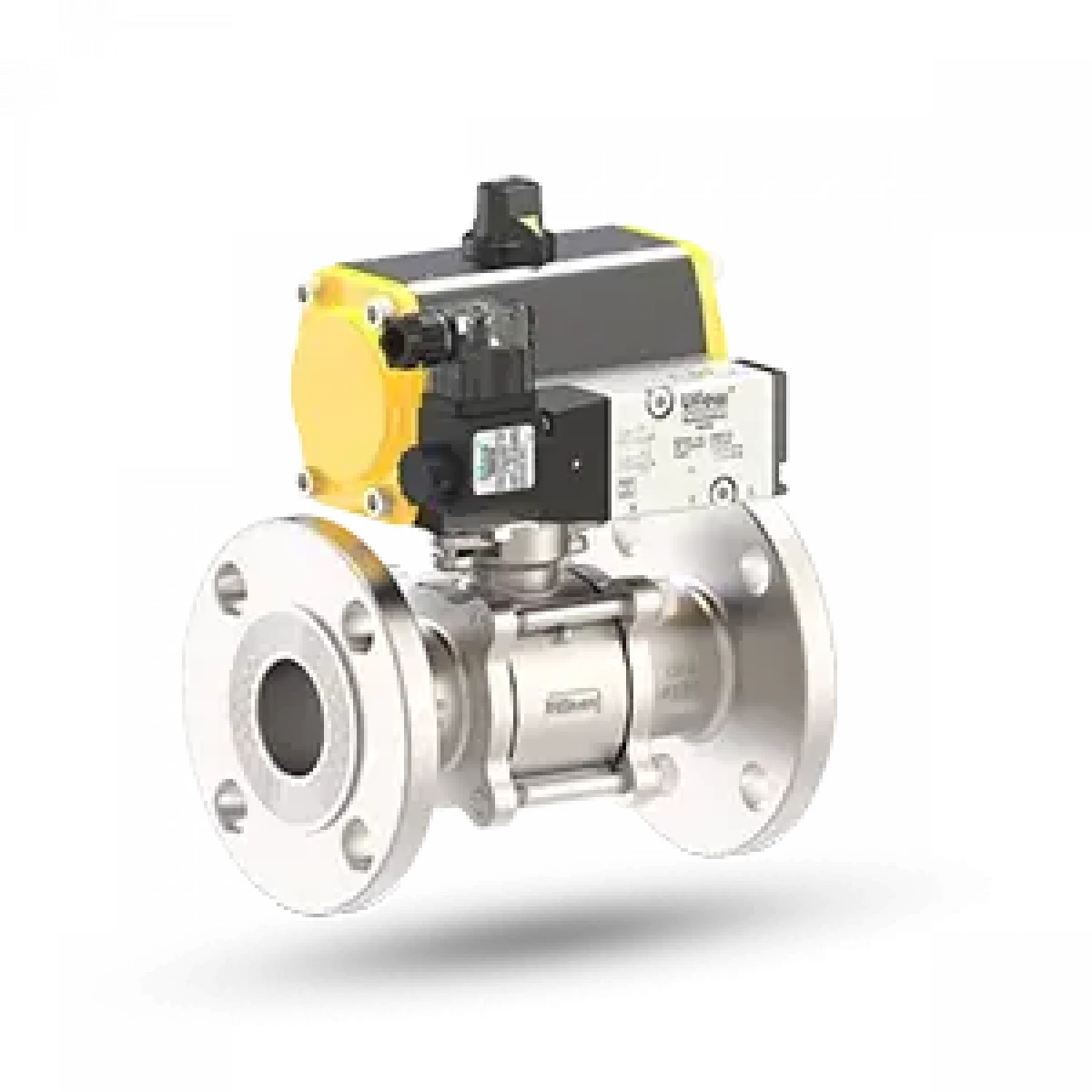

Actuated Ball Valves for Automated Flow Control

When the ball valve needs to operate as part of an automated system, actuator-operated versions are available. The Uflow range includes three-piece ball valves with pneumatic actuators and models with an ISO 5211 mounting pad for actuator installation. The listed 3 inch pad actuator model uses stainless steel construction, has a 150 PSI pressure rating and is available with a hard-anodized aluminium actuator.

Choosing the Right Connection and Material

The connection should match the existing pipeline. We supply models with flanged ends, screwed ends, socket weld ends and butt weld options across the available range. Material selection also depends on the application. Uflow's listed three-piece range includes CF8, CF8M, WCB and CF3M body options, with SS304, SS316 and SS410 stem options on specified designs. Seat and seal materials include PTFE, RPTFE, CFT, GFT and PEEK on the listed range.

Before ordering, we suggest checking the valve size, media, pressure, temperature, end connection and operating method. These details make a better starting point than choosing a valve only by pipe diameter.

Supply Support for Ahmedabad Industrial Requirements

We supply Uflow Automation ball valves for industrial requirements in Ahmedabad and across Gujarat. The range can cover manual flow isolation as well as automated on/off applications where a suitable actuator arrangement is required. We can help you check the available model based on your pipeline details and operating conditions.

If you're looking for a Uflow Automation ball valve in Ahmedabad, send us the required size, media, pressure, connection type and operation method. We'll help you identify the suitable three-piece ball valve option and provide the required product details for your enquiry.
