Solenoid Coil

A solenoid valve can't operate electrically without the right coil. The coil creates the magnetic field that moves the valve mechanism when the required electrical signal is applied. We supply Uflow Automation solenoid coils in Ahmedabad, Gujarat, for replacement and valve assembly requirements where the coil voltage, bore size, enclosure and power rating need to match the valve.

Choose the Coil Around the Valve Requirement

Solenoid coils may look similar from outside, but the specifications can be different. A coil needs to match the valve assembly and electrical supply. Uflow Automation offers solenoid coil options in different voltages, wattages, bore diameters, coil housings and protection arrangements.

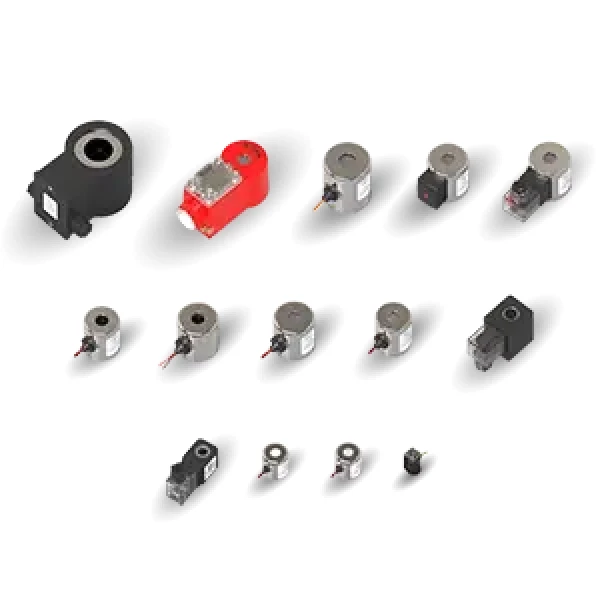

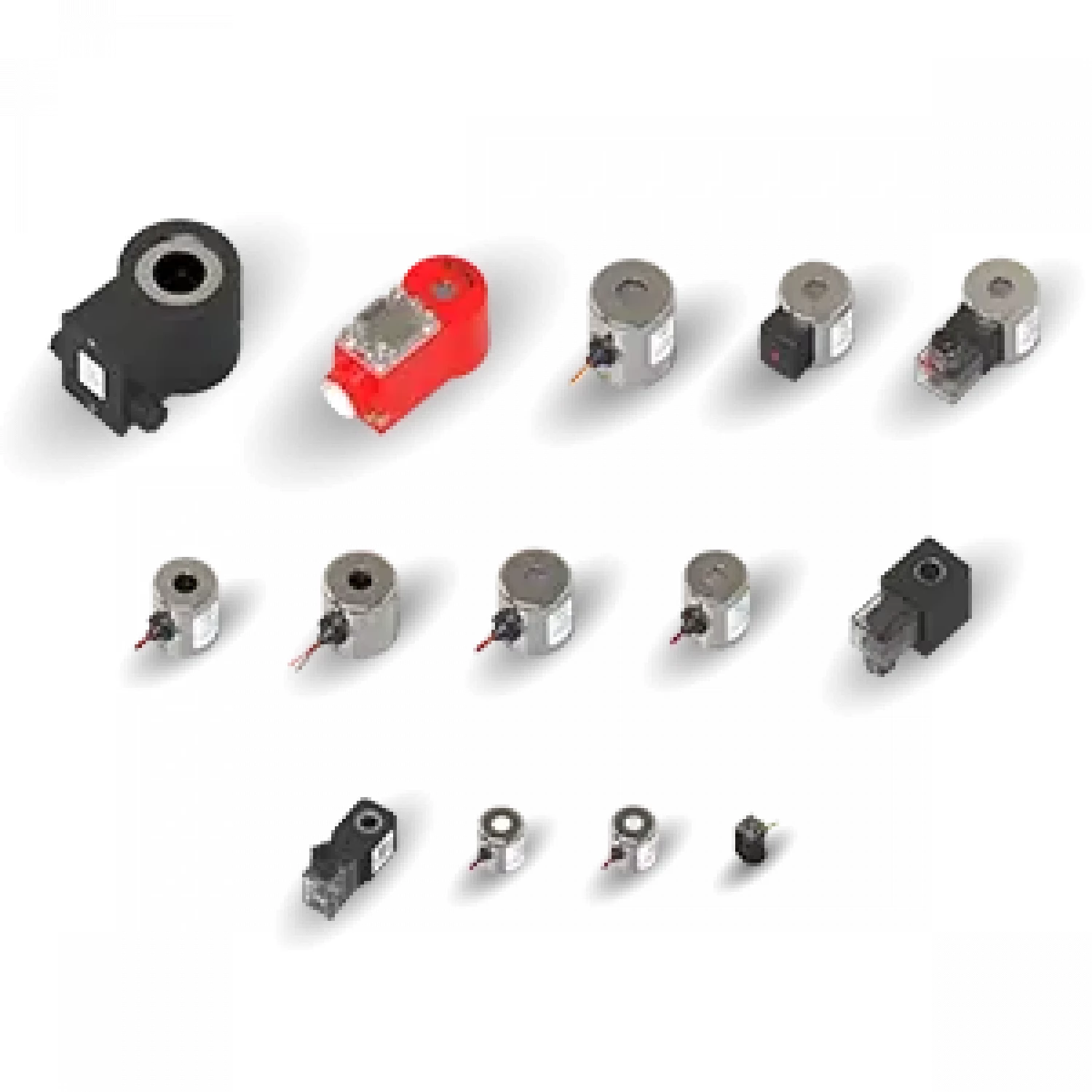

The available range includes epoxy moulded coils with LED DIN connectors, metallic round coils with lead wires, continuous-duty coils, flameproof coil enclosures and weatherproof coil enclosures. Latching coils and power saver series are also listed for selected requirements. :contentReference[oaicite:0]{index=0}

Uflow Automation Solenoid Coil Range

Voltage and Wattage Options

Electrical supply is one of the first things to check before ordering a replacement solenoid coil. The Uflow Automation range lists 24V AC, 110V AC, 230V AC, 12V DC and 24V DC options. Power consumption varies by voltage and coil type, with listed options ranging from 7W to 30W. :contentReference[oaicite:1]{index=1}

Bore Size Matters During Replacement

A replacement coil can't be selected only by voltage. The coil also has to fit the valve stem and assembly correctly. Uflow Automation lists bore diameters of 8 mm, 10 mm, 14 mm, 16 mm, 18 mm and 30 mm across its solenoid coil range. :contentReference[oaicite:2]{index=2}

Before ordering, we suggest checking the old coil, valve model, bore diameter, voltage and wattage. If the valve is already installed, a photograph of the coil marking can also help us understand the requirement.

Enclosure Options for Different Conditions

The working environment also matters. Uflow Automation lists epoxy square coils, metallic round enclosures, IP67 flameproof enclosures and IP68 weatherproof enclosures. The manufacturer also lists flameproof coils with 1/2 inch NPT, 3/4 inch NPT and M20 x 1.5 end connection options. :contentReference[oaicite:3]{index=3}

Power Saver and Latching Coil Options

For applications where a coil remains energised for long periods, power consumption and heat rise can become practical concerns. Uflow Automation lists a power saver series that can save up to 90% power, along with latching coil options. The listed benefits include lower battery drain, lower wiring cost, reduced temperature rise and low wattage operation. :contentReference[oaicite:4]{index=4}

We supply Uflow Automation solenoid coils for industrial requirements in Ahmedabad and across Gujarat. Share the valve model, coil voltage, wattage, bore size and required enclosure with us. We'll help you check the suitable coil option before supply.

If you're looking for a Uflow Automation solenoid coil in Ahmedabad, send us your existing coil details or valve requirement. We'll assist with the suitable specification and supply enquiry.
