Angle Seat Valves

When a process line needs quick and controlled opening or closing, the valve design matters. An angle seat valve uses an angled body arrangement and pneumatic actuation to control the flow path. We supply Uflow Automation angle seat valves in Ahmedabad, Gujarat, for applications where steam, air, water, chemicals, gases, oil, diesel, or hot water need controlled flow.

A Practical Range for Pneumatic Flow Control

Our Uflow Automation range includes 2/2 way pneumatically operated angle seat valves in different sizes and configurations. We offer models with plastic operators and steel operators, along with bi-directional angle seat valve options. The range includes sizes from 1/2 inch to 2 inch in the listed models, with screwed, flange, and Tri-Clamp connection options depending on the model.

Valve Sizes and Construction

Uflow Automation angle seat valves are available with stainless steel bodies in CF8 and CF8M grades. The listed range covers 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch and 2 inch pipe sizes. The technical range includes different orifice sizes and flow factors, so the valve can be selected according to the required line size and flow condition.

*The listed Uflow technical data shows a 7 kg/cm² maximum for the YCP-803NV2 model, while the other listed models are rated up to 16 kg/cm². The exact model should be checked before ordering.

Operator Choices for Different Control Needs

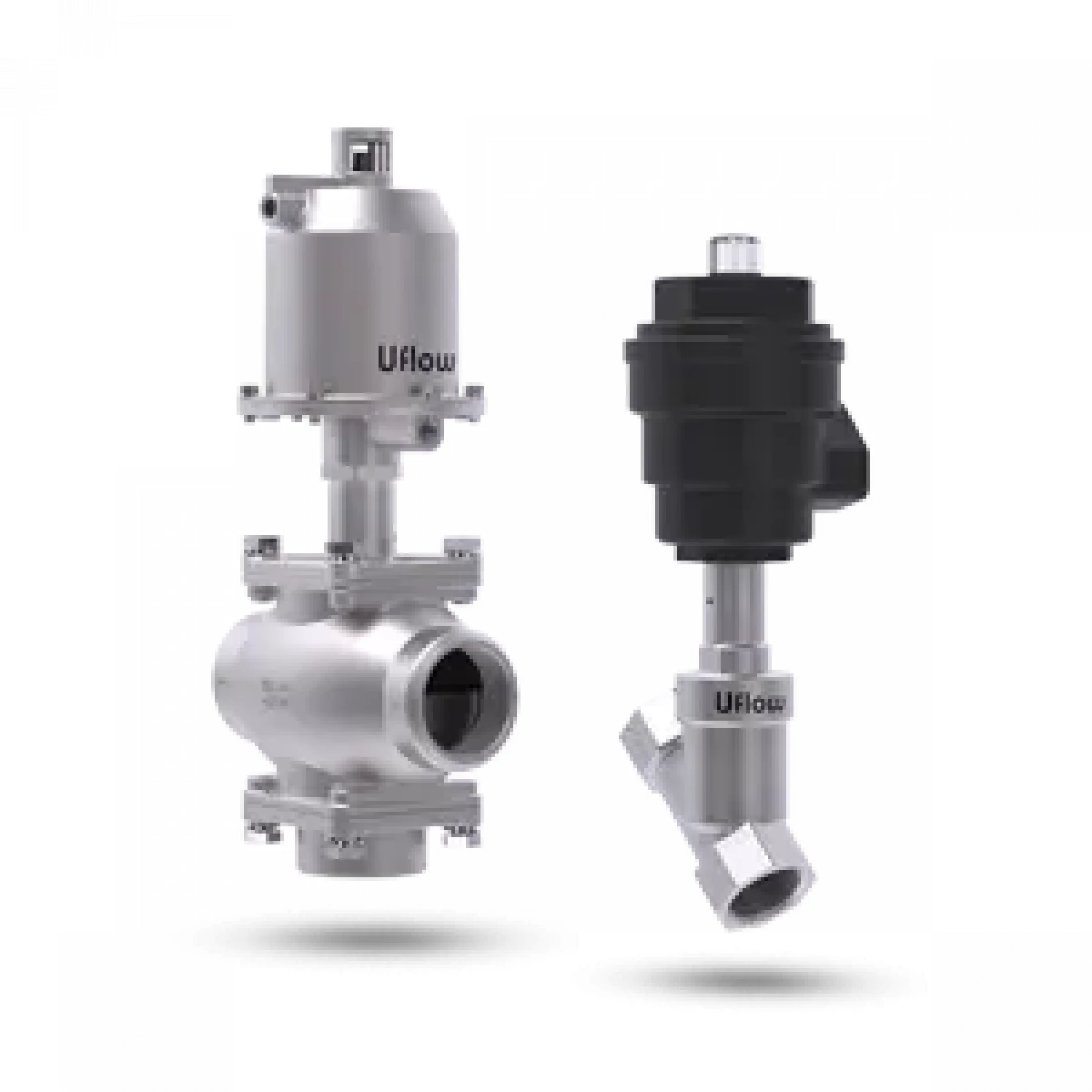

The operator is an important part of the valve assembly. Uflow Automation offers plastic operator and steel operator versions. The plastic operator models are available with NC, NO and double acting arrangements, while the steel operator range includes normally closed and normally open versions. The operator design can also support conversion between single acting and double acting operation on specified models.

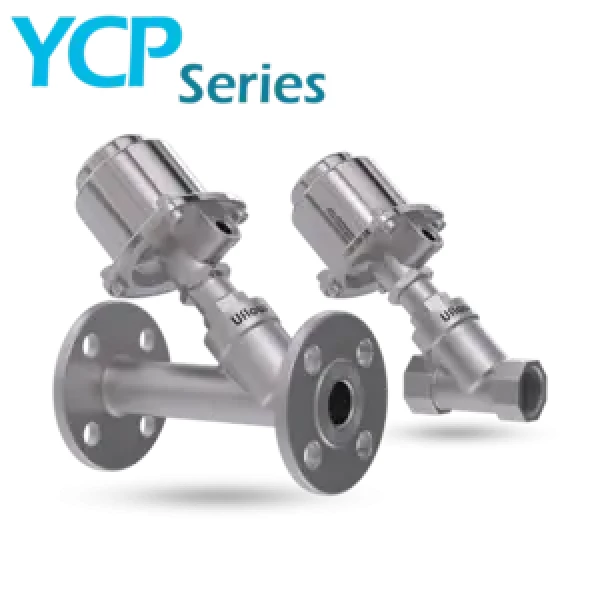

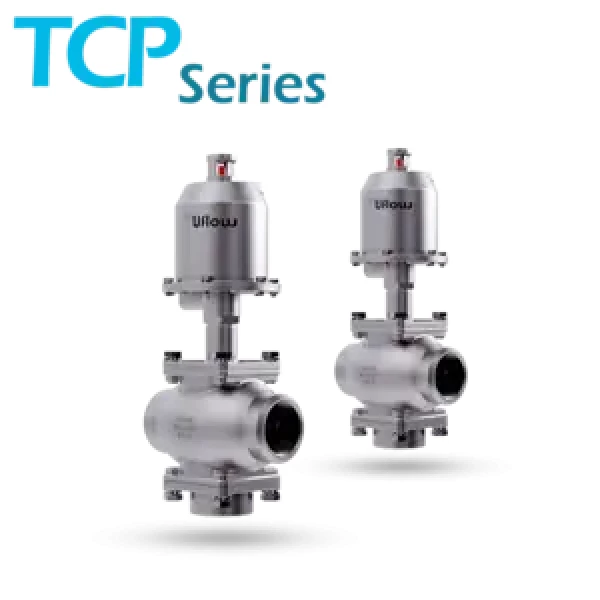

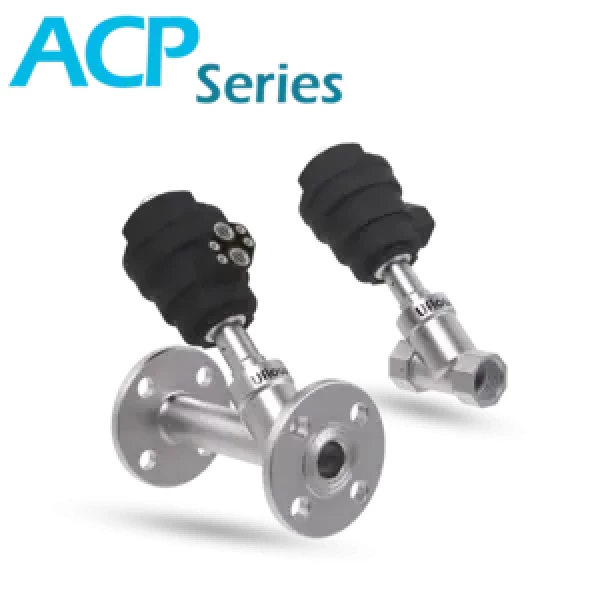

For the listed plastic operator range, the cover is nylon glass-filled with an SS liner. The steel operator version uses an SS304 cover and aluminium die-cast plate. Working air pressure is listed around 3.5 to 7 or 8 bar depending on the model and operator design.

Connection and Seal Options

Where These Valves Fit

We supply Uflow Automation angle seat valves for process applications involving steam, air, water, chemicals, gases, oil, diesel and hot water. The listed applications include steam systems, autoclaves and sterilizers, ink and paint dispensing, industrial compressor systems, bottling and dispensing equipment, textile dyeing and drying, and pharmaceutical applications.

For industries in Ahmedabad and across Gujarat, we can help with the basic selection details before supply. Share your pipe size, media, pressure, temperature, connection type and required valve action with us. We'll help you identify the suitable Uflow Automation angle seat valve from the available range.

If you're looking for an angle seat valve in Ahmedabad, send us your requirement today. We can assist with the suitable Uflow Automation model, technical details and supply enquiry.
