Air Cylinder

When a machine has to push, pull, clamp, lift or position a part, compressed air can provide the required linear movement through an air cylinder. We supply Uflow Automation air cylinders in Ahmedabad, Gujarat, for pneumatic automation applications where bore size, stroke, mounting and operating pressure need to match the machine.

Linear Motion Built Around Compressed Air

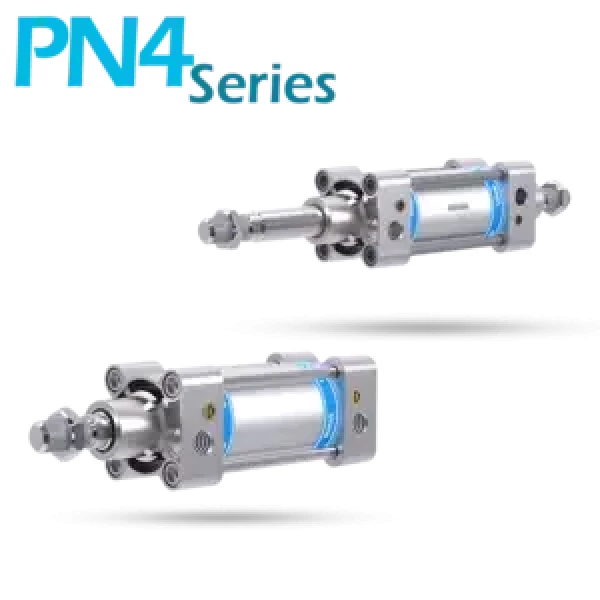

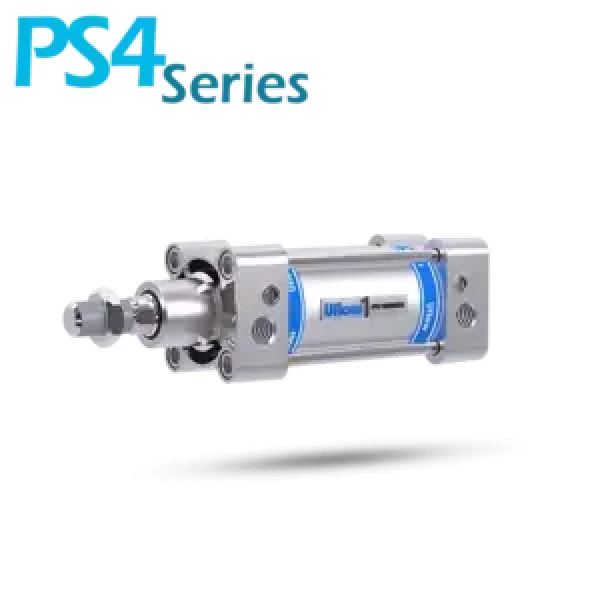

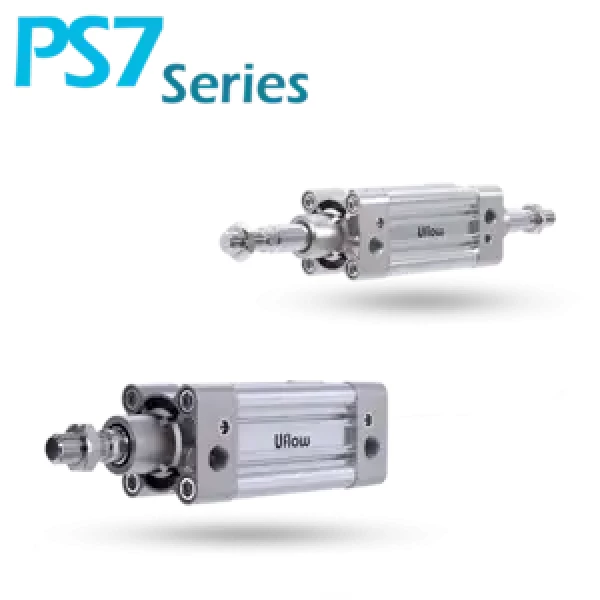

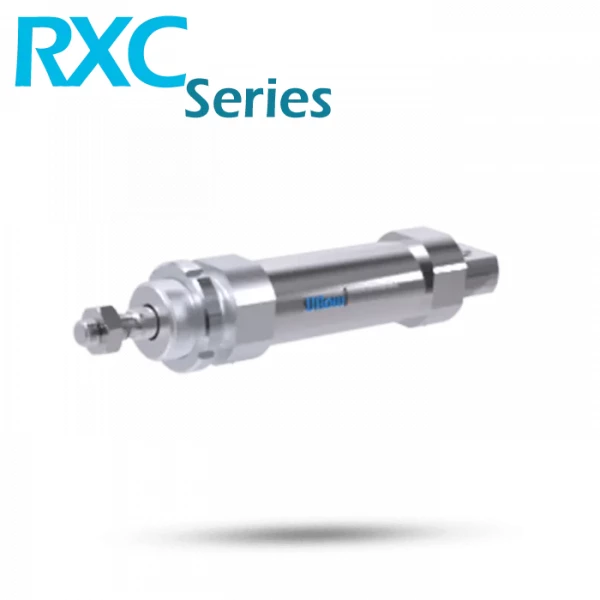

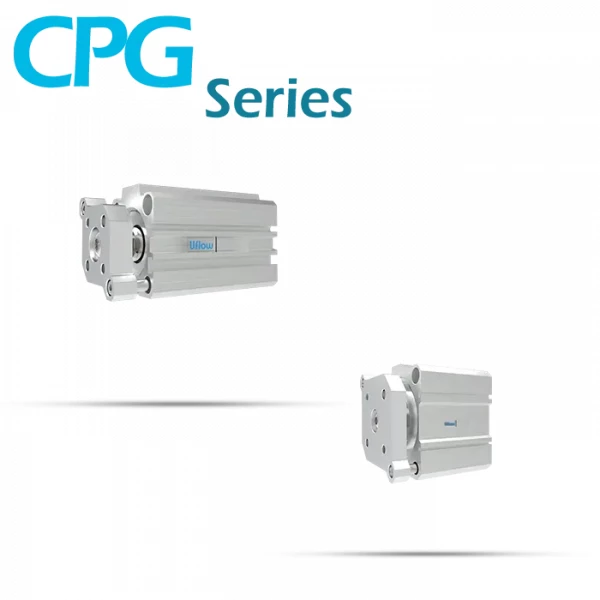

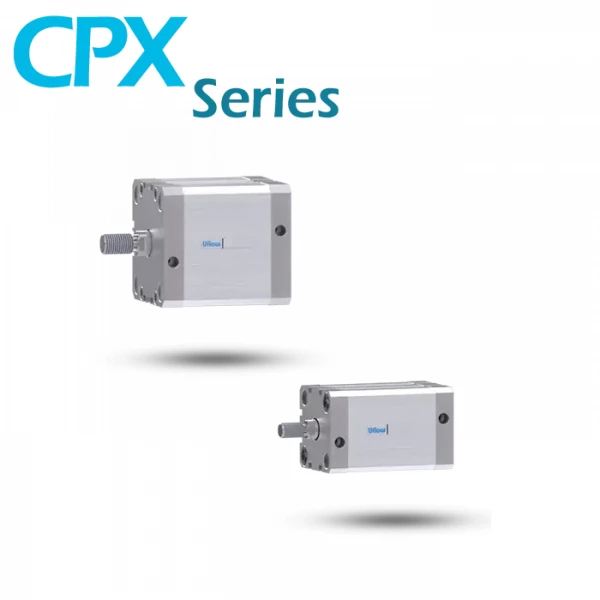

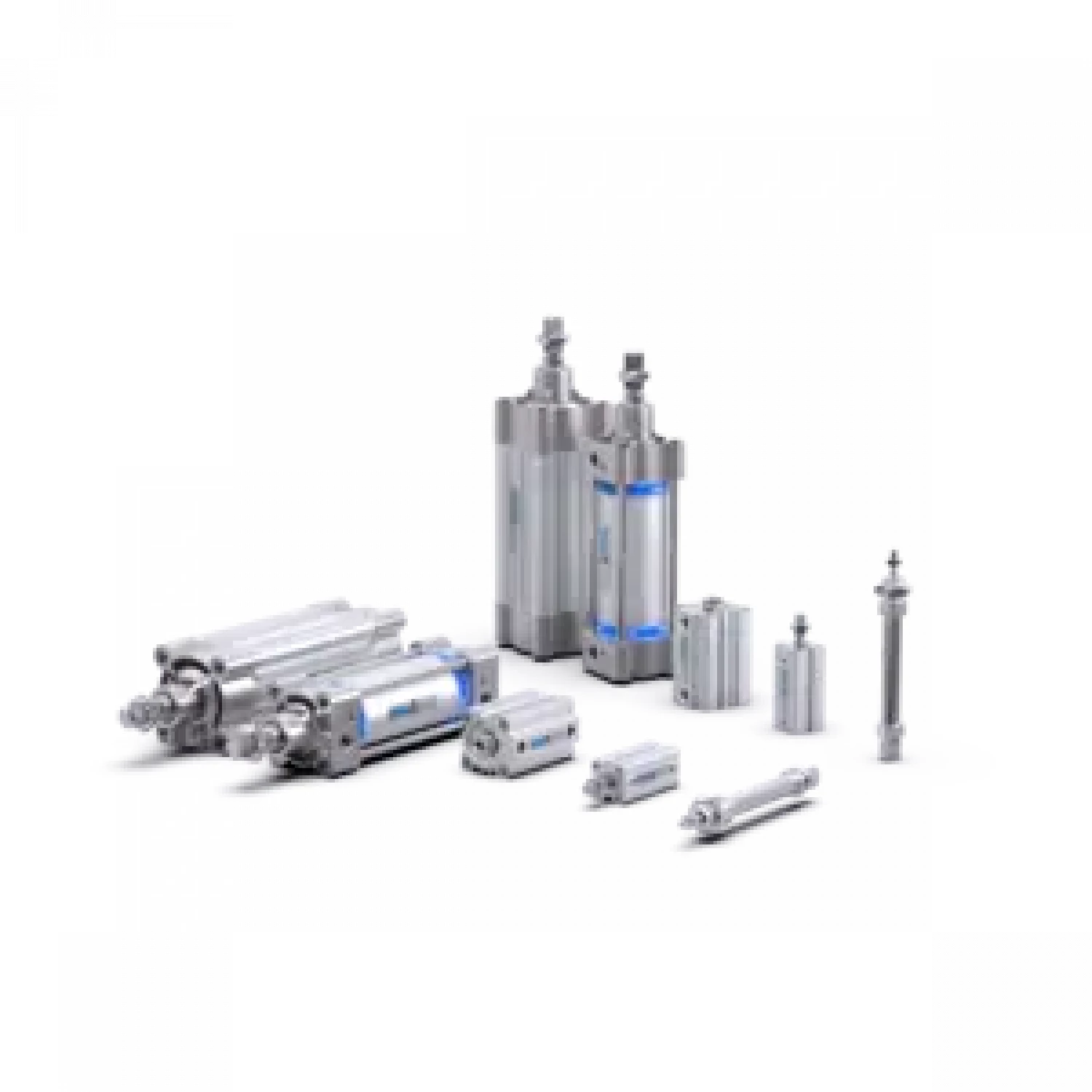

Uflow Automation offers several air cylinder designs for different machine layouts. The range includes tie rod air cylinders, profile air cylinders, miniature cylinders, compact cylinders and double-end configurations. The available series include CS4, CS7, MXC, PN4, PS4, PS7, CN4, CP, CPX, MCC, RXC and CPG models. :contentReference[oaicite:0]{index=0}

For a normal industrial automation setup, the cylinder is selected by looking at the required stroke and bore first. Then the mounting arrangement, air pressure, temperature and cylinder construction need to be checked.

Air Cylinder Range for Different Machine Designs

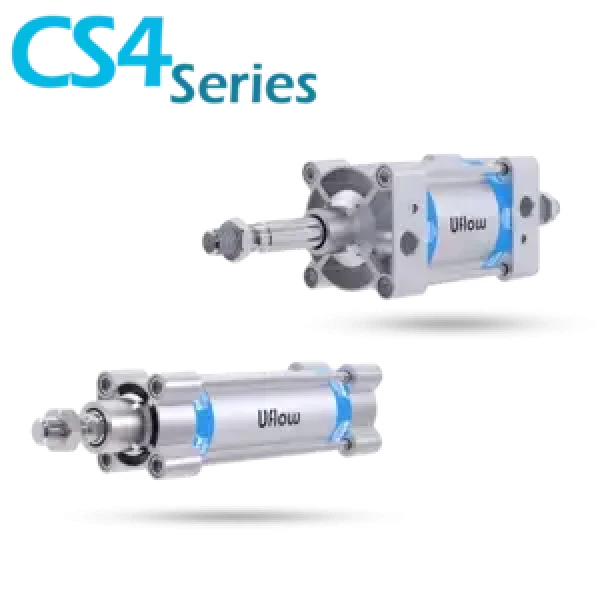

CS4 Tie Rod Cylinder for Industrial Automation

The Uflow Automation pneumatic tie rod cylinder range includes bore sizes of 32, 40, 50, 63, 80 and 100 mm, with standard strokes from 25 mm up to 500 mm. The listed media is filtered and lubricated compressed air, with a working pressure range of 0.5 to 10 bar. :contentReference[oaicite:1]{index=1}

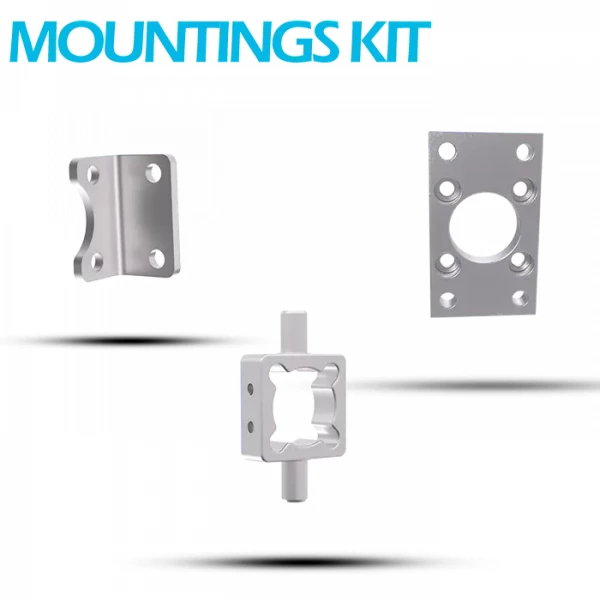

The construction uses aluminium, nitrile, steel, acetal and polyurethane materials in the listed cylinder specification. Adjustable cushioning with elastomer pads is provided at both ends, and different mounting options are available. :contentReference[oaicite:2]{index=2}

Stroke and Bore Selection

Bore and stroke aren't the same thing. Bore relates to the cylinder's internal diameter, while stroke tells us how far the piston rod needs to travel.

Compact and Profile Options

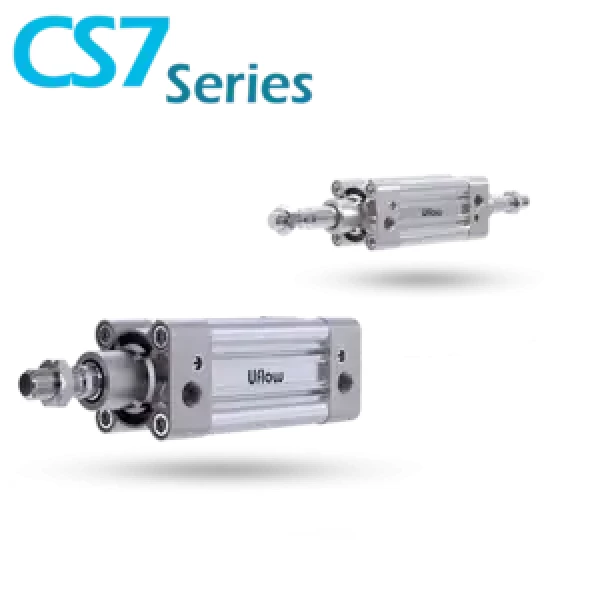

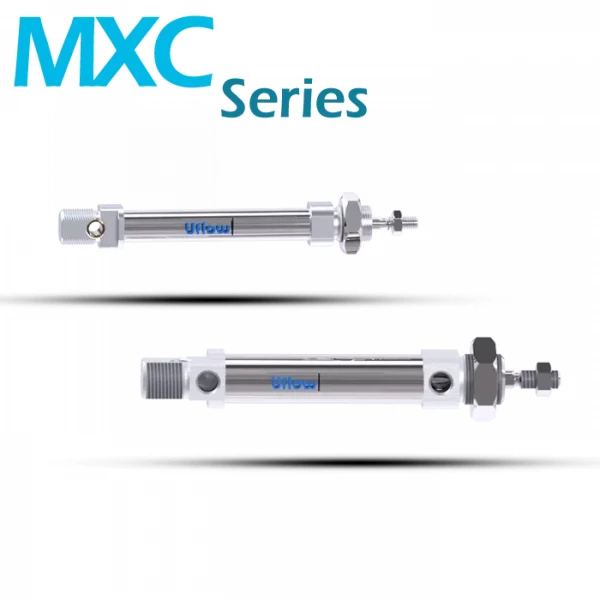

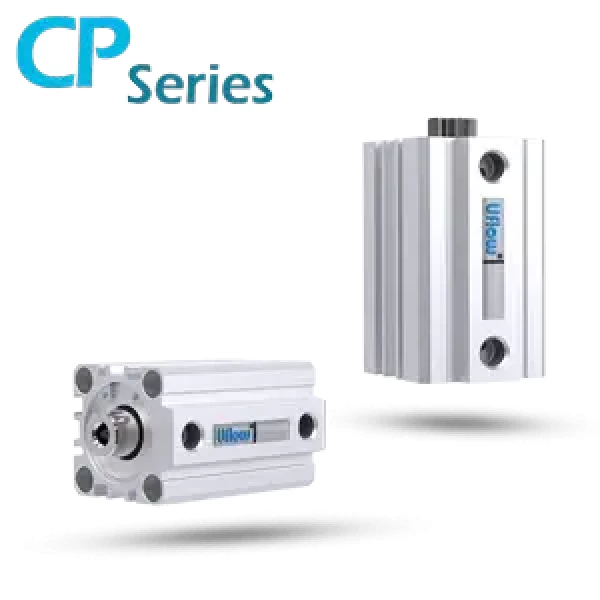

Not every machine has enough room for a long cylinder body. For such layouts, Uflow Automation lists compact and miniature cylinder ranges along with profile-type designs. The product range includes ISO 6432 miniature cylinders and ISO 15552 profile cylinders, giving buyers different construction options based on the available machine space and required movement. :contentReference[oaicite:3]{index=3}

Double-end, double-acting versions are also part of the listed air cylinder range. These can be considered where the application needs piston rod arrangements at both ends. :contentReference[oaicite:4]{index=4}

Details to Share Before Ordering

We supply Uflow Automation air cylinders for pneumatic automation requirements in Ahmedabad and across Gujarat. If you need a tie rod, profile, miniature, compact or double-end air cylinder, share the bore, stroke, pressure and mounting details with us. We'll help you check the suitable Uflow Automation series and available specification for your application.
